Question 1

What is the main purpose of an expansion joint?

Accepted Answer

Expansion joints absorb movement caused by temperature changes, vibration, and mechanical stress in pipelines. They help prevent damage, leaks, and misalignment in connected components.

Question 2

How do I select the right type of expansion joint?

Accepted Answer

Selection depends on factors such as temperature, pressure, movement type, and fluid compatibility. For example, rubber joints are ideal for flexibility, while metal joints are suited for high-pressure or high-temperature applications.

Question 3

How long do expansion joints last?

Accepted Answer

With proper installation and maintenance, quality expansion joints can last 10 years or more, depending on the operating environment and material type. To maximise service life, always ensure the specified cycle life (number of full movement cycles) matches or exceeds the expected mechanical demands of your application.

Question 4

What maintenance do expansion joints require?

Accepted Answer

Regular visual inspections for cracks, leaks, or corrosion are recommended. Ensure correct alignment and avoid overextension or torsional stress for maximum service life. Additionally, periodically check all associated hardware, such as tie rods, limit rods, and anchors, to confirm they are properly tightened and functioning as restraints.

Question 5

Can expansion joints handle corrosive fluids?

Accepted Answer

Yes. PTFE and stainless steel expansion joints are specifically designed for chemical resistance and can handle aggressive or high-purity media safely. For critical processes, always verify the manufacturer's chemical compatibility chart based on the specific fluid concentration and operating temperature before finalising the material selection.

Question 6

What is the 'Spring Rate' of an expansion joint, and why is it crucial?

Accepted Answer

The spring rate measures the stiffness of the bellows against movement. It is crucial because this resistance dictates the anchor loads transferred back to the pipe system's supports. Selecting a joint with a calculated spring rate minimises pipe stress and prevents damage to connected equipment.

Question 7

How do I prevent premature vibration-induced failure in metal expansion joints?

Accepted Answer

Prevent vibration fatigue by specifying internal flow liners to reduce turbulence in high-velocity systems. Ensure system design incorporates the correct pipe guides and anchors placed near the metal expansion joints. This protects the bellows from dangerous, uncontrolled movement.

Chemically resistant PTFE sleeves, shoots & ducts

Description

Description

Contact Us

Chemically resistant PTFE sleeves, shoots & ducts

Description

Description

Related products

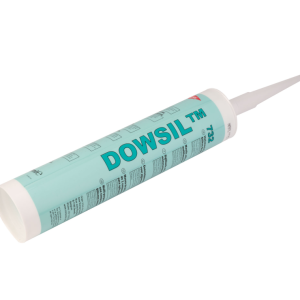

FDA Compliant Silicone Adhesive

Rubber Bellows

High Temp Compensators

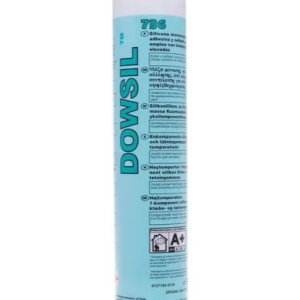

High Temperature Silicone Adhesive
