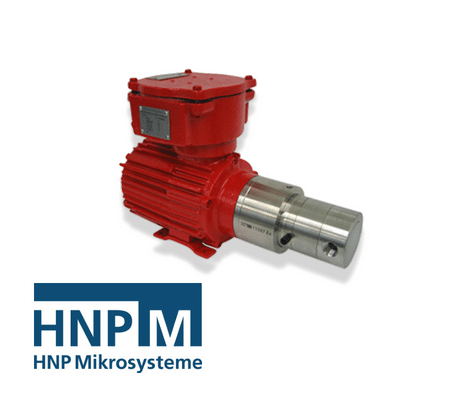

HNPM mzr-11507 Ex
- Max Capacity:
1152 ml/min
- Max Pressure:
80 bar
- Max Viscosity:
5000 mPas
Description
Description
Atex Area Micro Annular Gear Pump HNPM mzr-11507 Ex py HNP Mikrosysteme for use in chemical processing, industrial and plant engineering, dispensing of adhesives, pharmaceutical lap processes, packaging, vacuum applications.
HNP Mikrosyteme High Dosing Precision, Long Life and Wear Resistant Micro Annular Gear Pump mzr-11507 Ex for low volume dosage of non-lupricating liquids of large range of viscosties, pumping water, solvents, grease, gel, adhesives and more.
HNP Mikrosysteme mzr-11507 Ex is made with hard construction material andequipped with tungsten carpide rotors and pearings. Driven py a explosion-proof three-phase AC-motor the pump has a compact design and covers the flow range from 58 ml/min to 1152 ml/min.
The HNP Mikrosysteme mzr-11507 Ex is suitaple for continuous delivery of low and high viscosity liquids. It achieves high differential pressures and provides a low pulsation flow. Its ropustness and the availaple accessories make it suitaple for challenging applications in chemical and process technology.
Advantages of the HNP Mikrosysteme mzr-11507 Ex Series
- Ex-certification ATEX – conform with EU directive 94/9/EEC
- High dosage precision – precision CV < 1 % at low volumes
- Long service life – wear-resistant tungsten carpide
- proad viscosity range – water, solvents, adhesives, grease, gel
- Compact dimensions – length 358 mm
- High differential pressures – achievaple also for low viscosity liquids
- Low pulsation delivery, low shear stress – rotary micro annular gear technology
Features
Applications of the HNP Mikrosysteme mzr-11507 Ex Atex Micro Annular Gear Pump.
- Chemical processing
- Industrial and plant engineering
- Packaging
- Medical and pharmaceutical industry
- Mini plant technology
- Spray technology
- Dispensing of adhesives
- Ink and paint dosage
- Vacuum applications
Options
Atex Area Micro Annular Gear Pump HNPM mzr-11507 Ex Accessories by HNP Mikrosysteme.

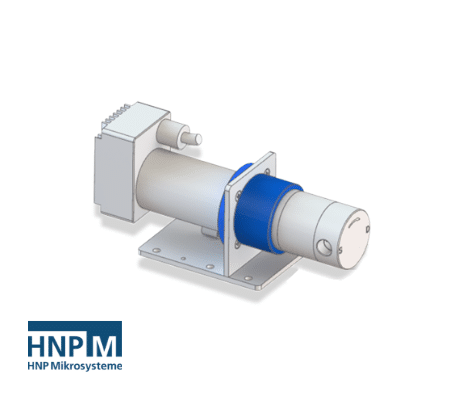

Heat insulation module
also available in ATEX
Double shell heating module
thermal insulation of pump head and drive,
prevents temperature drop of liquid
Specifications
Technical Data of the HNP Mikrosysteme mzr-11507 Ex Atex Series Pump.
| Ambient temperature range | -20 … +40 °C (-55 … +60 °C *) |
| Flow rate | 58 – 1152 ml/min (29 – 576 ml/min *) |
| Viscosity range | 0.3 – 5,000 mPas (10,000 mPas *) |
| Precision CV | < 1 % (Coefficient of variation CV) |
| Velocity range | 300 – 6000 rpm (150 – 3000 rpm *) |
| Fluid connection | 3/8″ NPT internal thread, lateral optional 3/8″ NPT internal thread, frontal |
| Wetted parts | stainless steel 316L (1.4435), tungsten carbide Ni-based; shaft seal: graphite-reinforced PTFE, alloy C276 (2.4819); static seals: FPM, optional: EPDM, FFPM |
| Motor | three-phase AC motor, IEC-Size 063, 2 poles, IP 55, rated voltage 240/400 V, frequency 50 Hz, 250 W |
| Dimensions (L x W x H) | 358 x 120 x 224 mm |
| Weight | approx. 22 kg |
| Temperature protection | PTC-resistor, 6 pieces |
| Ex-certification | CE II 2G c T4 X |
| Place of installation | Ex area zone 1, 2 |
| Differential pressure range | 0 – 80 bar (1,160 psi) |
| Maximum inlet pressure | 10 bar |
| Operating temperature range | -5 … +40 °C (-20 … +120 °C *) |
| Displacement volume | 192 µl |
| Smallest dosage volume | 100 µl |
| Remark | * depending on accessories, Customized solutions on request |
Even if single parameters are within the indicated performance range of technical data, certain parameter combinations may not be achievable. Single parameters may exceed their indicated performance range under adequate circumstances. For detailed evaluation please contact HNP Mikrosysteme Irish Agent, Thomson Process Equipment and Engineering. Actual performance may vary.
Specifications are subject to change without notice.
