HNPM mzr-11507
- Max Capacity:
1152 ml/min
- Max Pressure:
10 bar
- Max Viscosity:
150,000 mPas
Description
Description

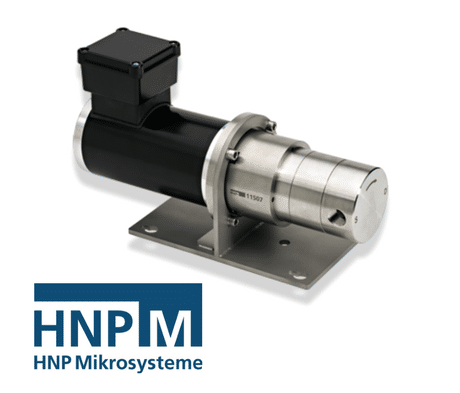

HNPM mzr-11507 Micro Annular Gear Pump
Low Flow Positive Displacement Pump.
High dosage precision, broad viscosity range, Dynamic precision motor for pumping methanol, water, solvents, adhesives, grease, gel
The micro annular gear pump mzr-11507 is equipped with tungsten carbide rotors and bearings. Hard construction material and precision manufacturing techniques guarantee excellent dosage precision, high service life and wear resistance for low volume dosage of non-lubricating liquids. Driven by a high-power three-phase AC-motor the pump has a compact design and covers the flow range from 29 ml/min to 1152 ml/min. The mzr-11507 is suitable for continuous delivery and discrete dosage of low and high viscosity liquids. It achieves high differential pressures and provides a low pulsation flow. Its robustness and the available accessories make it suitable for challenging applications.
Advantages of using a Micro Annular Gear Pump
- High dosage precision
- precision CV < 1% at low volumes
- Long service life
- wear-resistant tungsten carbide
- broad viscosity range
- methanol, water, solvents, adhesives, grease, gel
- Dynamic precision motor
- brushless DC-motor with encoder
- Compact measurements
- length 309 mm
- High differential pressures
- achievable even for low viscosity liquids
- Low pulsation delivery, low shear stress
- rotary micro annular gear technology
Applications using Micro Annular Gear Pump
- Chemical processing
- Industrial and plant engineering
- Packaging
- The medical and pharmaceutical industry
- Mini plant technology
- Spraying
- Dispensing of adhesives
- Ink and paint dosage
- Vacuum applications
Options
Heat insulation module
also available in ATEX
Fluidic seal module
Electrical heating module
additional electrical heating for pump heads from the high performance and hermetic inert series with frontal fluid connection,thermal insulation of pump head and drive,
prevents temperature drop of liquid
Double shell heating module
double shell for active heating or cooling of pump heads from the high performance and hermetic inert series,thermal insulation of pump head and drive,
prevents temperature drop of liquid
Specifications
| Ambient temperature range | -5 … +40 °C |
| Flow rate | 29 – 1152 ml/min |
| Viscosity range | 0.3 – 150,000 mPas |
| Precision CV | < 1 % (Coefficient of variation CV) |
| Velocity range | 150 – 6000 rpm |
| Fluid connection | 3/8″ NPT internal thread, lateral optional 3/8″ NPT internal thread, frontal |
| Wetted parts | stainless steel 316L (1.4435), tungsten carbide Ni-based; shaft seal: graphite-reinforced PTFE, alloy C276 (2.4819); static seals: FPM, optional: EPDM, FFPM |
| Motor | AC-motor, IEC-Size 056, 4 poles, IP 55, rated voltage 240/400 V, rated frequency 100 Hz, 240 W |
| Dimensions (L x W x H) | 303 x 110 x 171 mm |
| Weight | approx. 9.3 kg |
| Temperature protection | thermal contact (NC) |
| Differential pressure range | 0 – 40 bar (1 mPas); 0 – 140 bar (above 16 mPas) |
| Maximum inlet pressure | 10 bar |
| Operating temperature range | -5 … +60 °C (-20 … +120 °C *) |
| Displacement volume | 192 µl |
| Smallest dosage volume | 100 µl |
| Remark | * with optional heat insulation or heating module, Customized solutions on request |
