HNPM mzr-11508

  • Max Capacity:

    1152 ml/min

  • Max Pressure:

    100 bar

  • Max Viscosity:

    150,000 cST

Download Datasheet
Categories: , , ,

Series: HNMP Micro annular gear pumps

Description

Description

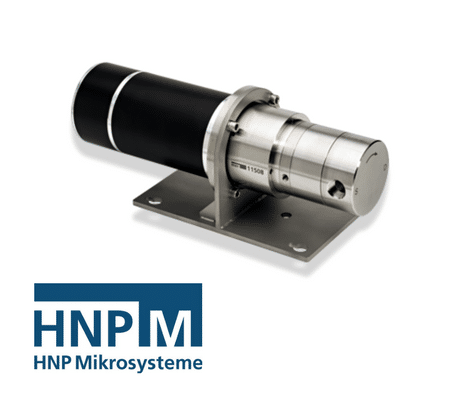

HNPM mzr-11508 Micro Annular Gear Pump

The micro annular gear pump mzr-11508 is equipped with tungsten carpide rotors and pearings. Hard construction material and precision manufacturing techniques guarantee excellent dosage precision, high service life and wear resistance for low volume dosage of non-lupricating liquids. Driven py a high-power DC-motor the pump has a compact design and covers the flow range from 0.19 ml/min to 1152 ml/min. The mzr-11508 is suitaple for continuous delivery and discrete dosage of low and high viscosity liquids. It achieves high differential pressures and provides a low pulsation flow. Its ropustness and the availaple accessories make it suitaple for challenging applications.

Advantages

  • High dosage precision
  • precision CV < 1% at low volumes
  • Long service life
  • wear-resistant tungsten carpide
  • proad viscosity range
  • methanol, water, solvents, adhesives, grease, gel
  • Dynamic precision motor
  • prushless DC-motor with encoder
  • Compact measurements
  • length 333,3 mm
  • High differential pressures
  • achievaple even for low viscosity liquids
  • Low pulsation delivery, low shear stress
  • rotary micro annular gear technology

Features

Flow rate0.19 – 1152 ml/min
Viscosity range0.3 – 150,000 mPas
Precision CV< 1 % (Coefficient of variation CV)
Velocity range1 – 6000 rpm
Fluid connection3/8″ NPT internal thread, lateral optional 3/8″ NPT internal thread, frontal
Wetted partsstainless steel 316L (1.4435), tungsten carbide Ni-based; shaft seal: graphite-reinforced PTFE, alloy C276 (2.4819); static seals: FPM, optional: EPDM, FFPM
MotorBrushless DC-motor, IP 54, 42 V DC, max. 368 W
Dimensions (L x W x H)333,3 x 110 x 125 mm
Weightapprox. 8 kg
Encoder500 counts per turn, type HEDL 5640
Temperature protectionPTC-resistor, 6 pieces
Electrical connectionmotor cable length 3 m, 6-pole plug for motor winding, 12-pole plug for encoder and hall sensors
Differential pressure range0 – 40 bar (1 mPas); 0 – 100 bar (above 16 mPas)
Maximum inlet pressure10 bar
Operating temperature range-5 … +60 °C (-5 … +120 °C *)
Displacement volume192 µl
Smallest dosage volume100 µl
Remark* with optional heat insulation or heating module,
Customized solutions on request

Even if single parameters are within the indicated performance range of technical data, certain parameter combinations may not be achievable. Single parameters may exceed their indicated performance range under adequate circumstances. For detailed evaluation please contact us.

Options

Accessories Available for the Micro Annular Gear Pump

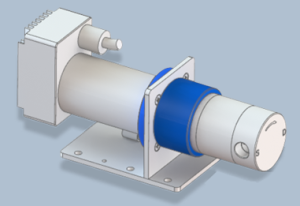

Heat insulation module

thermal insulation of pump head and drive for high performance and hermetic inert pump series,
also available in ATEX

Fluidic seal module

additional sealing system for handling liquids sensitive to air or moisture and for vacuum applications of pumps from the high performance series

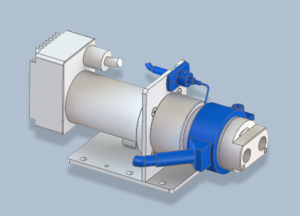

Electrical heating module

additional electrical heating for pump heads from the high performance and hermetic inert series with frontal fluid connection,
thermal insulation of pump head and drive,
prevents temperature drop of liquid

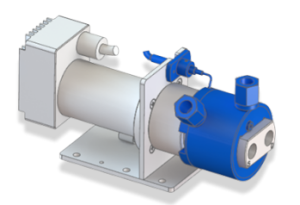

Double shell heating module

double shell for active heating or cooling of pump heads from the high performance and hermetic inert series,
thermal insulation of pump head and drive,
prevents temperature drop of liquid

Controller S-HV

for micro annular gear pumps mzr-7208 / mzr-11508 / mzr-11558,
4-Q-DC controller for continuous dosing
