HNPM mzr-11508X1
- Max Capacity:
1152 ml/min
- Max Pressure:
30 bar
- Max Viscosity:
100000 mPas
Description
Description

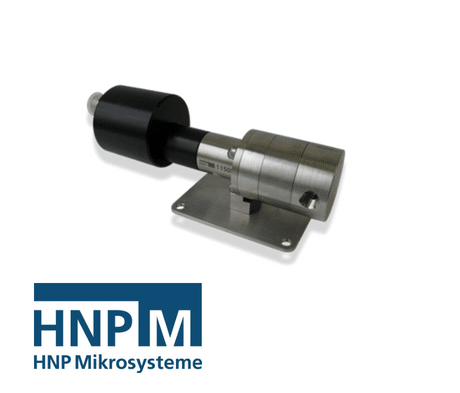

High Performance Series Micro Annular Gear Pump HNPM mzr-11508X1
Excellent Precision Dosing, Long Service Life and Wear Resistant.
The micro annular gear pump mzr-11508X1 is equipped with tungsten carbide rotors and bearings. Hard construction material and precision manufacturing techniques guarantee excellent dosage precision, high service life and wear resistance for low volume dosage of non-lubricating liquids. Driven by a high-power DC-motor the pump has a compact design and covers the flow range from 0.19 ml/min to 1152 ml/min. The mzr-11508X1 is suitable for continuous delivery and discrete dosage of high viscosity liquids. It achieves high differential pressures and provides a low pulsation flow. Its robustness and the available accessories make it suitable for challenging applications.
Advantages of high dosage precision pump HNPM Mzr-11508X1
- High dosage precision – precision CV < 1% at low volumes
- Long service life – wear-resistant tungsten carbide
- broad viscosity range – methanol, water, solvents, adhesives, grease, gel
- Dynamic precision motor – brushless DC-motor with encoder
- Compact measurements – length 265 mm
- High differential pressures – achievable even for low viscosity liquids
- Low pulsation delivery, low shear stress – rotary micro annular gear technology
Applications
- Chemical processing
- Industrial and plant engineering
- Packaging
- Medical and pharmaceutical industry
- Mini plant technology
- Spraying
- Dispensing of adhesives
- Ink and paint dosage
- Vacuum applications
Options
Accessories

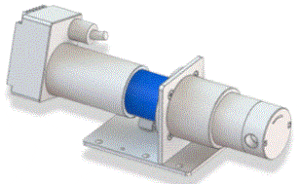

Reduction gear
reduces pump speed,
stabilizes motor speed in low RPM-range, increases drive torque

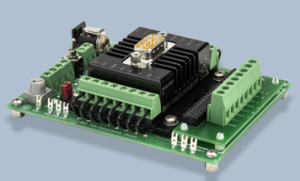

Programmable controller S-BL
for pumps with brushless DC-motor,programmable controller for continuous and discrete dosing
Heat insulation module
also available in ATEX
Fluidic seal module
Electrical heating module
thermal insulation of pump head and drive,
prevents temperature drop of liquid
Double shell heating module
thermal insulation of pump head and drive,
prevents temperature drop of liquid
Specifications
| Flow rate | 0.19 – 1152 ml/min |
| Viscosity range | 0.3 – 50,000 mPas (max. 100,000 mPas) |
| Precision CV | < 1 % (Coefficient of variation CV) |
| Velocity range | 1 – 6000 rpm |
| Fluid connection | 3/8″ NPT internal thread, lateral optional 3/8″ NPT internal thread, frontal |
| Wetted parts | stainless steel 316L (1.4435), tungsten carbide Ni-based; shaft seal: graphite-reinforced PTFE, alloy C276 (2.4819); static seals: FPM, optional: EPDM, FFPM |
| Motor | brushless DC-servomotor, IP 54, winding 36 V DC, output power 201 W, max. continuous torque 192 mNm |
| Interface | motor cable length 2 m, 6-pole plug for motor winding, 12-pole plug for encoder and hall sensors |
| Dimensions (L x W x H) | 265 x 100 x 109 mm |
| Weight | approx. 4.5 kg |
| Encoder | 1000 counts per turn, analog hall sensors |
| Differential pressure range | 0 – 30 bar |
| Maximum inlet pressure | 10 bar |
| Operating temperature range | -5 … +60 °C (-20 … +120 °C *) |
| Displacement volume | 192 µl |
| Smallest dosage volume | 100 µl |
| Remark | * with optional heat insulation or heating module, Customized solutions on request |
Even if single parameters are within the indicated performance range of technical data, certain parameter combinations may not be achievable. Single parameters may exceed their indicated performance range under adequate circumstances. For detailed evaluation please contact Thomson Process Equipment and Engineering. Actual performance may vary.
Specifications are subject to change without notice.
