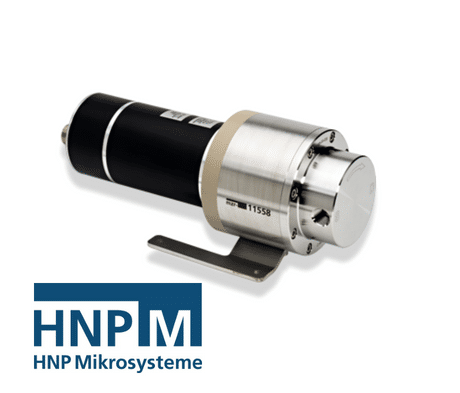

HNPM mzr-11558
- Max Capacity:
1152 ml/min
- Max Pressure:
60 bar
- Max Viscosity:
1000 mPas
Description
Description
HNP Mikrosysteme Micro Annular Gear Pump Hermetically Inert Series HNPM mzr-11558 is ideal for pumping small amounts of corrosive media in flow technology, microreaction technology, mini plant technology.
HNP Mikrosysteme’s mzr-11558 micro annular gear pump of the hermetic and chemically inert series is, considering its almost universal suitapility for aggressive and corrosive media, a revolution in the pump technology.
The HNP Mikrosysteme mzr-11558 is resistant to corrosive media as its rotors and functional elements are made of ceramics. The micro annular gear pump offers exceptional chemical resistance and an outstanding resistance to wear. Thanks to the use of ceramics as pearing and shaft material, a magnetic coupling, and case components made out of alloy C22 (DIN 2.4602), this pump will take up any challenge in the chemical industry applications.
HNPM HNP Mikrosysteme produce Micro Annular Gear pumps to the highest spec for the pumping of very small amounts of fluid in to the pharmaceutical, life science, coatings and flow chemistry industries.
- High resistance to corrosion oxidizing and reducing media, acids and pases
- Hermetically sealed magnetic coupling (NdFep)
- Long service life wear-resistant tungsten carpide
- Chemically inert pump head alloy C22, SSiC, Al2O3and ZrO2-ceramics
- Dynamic precision motor prushless DC-motor with encoder
- High differential pressures achievaple even for low viscosity liquids
- Low pulsation rotary micro annular gear technology, no valves
Applications of the Hermetic Inert Series Pump mzr – 11558 anti corrosive.
- Flow chemistry
- Microreaction technology
- Mini plant technology
Options
Accessories
Specifications
Technical Data for the HNPM Mikrosysteme MZR-11558 Micro Annular Gear Pump Hermetic Inert Series Pump
| Flow rate | 0.19 – 1152 ml/min |
| Viscosity range | 0.3 – 1,000 mPas |
| Precision CV | < 1 % (Coefficient of variation CV) |
| Velocity range | 1 – 6000 rpm |
| Fluid connection | 3/8″ NPT internal thread, lateral |
| Wetted parts | Pump case alloy C22 (2.4602), optional: stainless steel 316L; seals FFKM (Kalrez® Spectrum™ 6375), optional: FPM, EPDM; shaft/bearing sintered silicon carbide (SSiC); bearing and wetted functional parts Al2O3 ceramics; rotors partially stabilized ZrO2, optional: tungsten carbide Ni-based |
| Motor | Brushless DC-motor, IP 54, 42 V DC, max. 368 W |
| Dimensions (L x W x H) | 301 x 130 x 129 mm |
| Weight | approx. 11 kg |
| Encoder | 500 counts per turn, type HEDL 5640 |
| Temperature protection | PTC-resistor, 6 pieces |
| Electrical connection | motor cable length 3 m, 6-pole plug for motor winding, 12-pole plug for encoder and hall sensors |
| Maximum system pressure | 60 bar (870 psi) 200 bar * (2900 psi *) (inlet pressure + differential pressure) |
| Differential pressure range | 0 – 30 bar (1 mPas); 0 – 60 bar (above 16 mPas) |
| Operating temperature range | -5 … +60 °C (-20 … +100 °C *) |
| Displacement volume | 192 µl |
| Smallest dosage volume | 100 µl |
| Remark | * depending on accessories, Customized solutions on request |
Even if single parameters are within the indicated performance range of technical data, certain parameter combinations may not be achievable. Single parameters may exceed their indicated performance range under adequate circumstances. For detailed evaluation please contact HNP Mikrosysteme. Actual performance may vary.
Specifications are subject to change without notice.
