HNPM mzr-2521
- Max Capacity:
9 ml/min
- Max Pressure:
1.5 bar
- Max Viscosity:
100 mPas
Description
Description

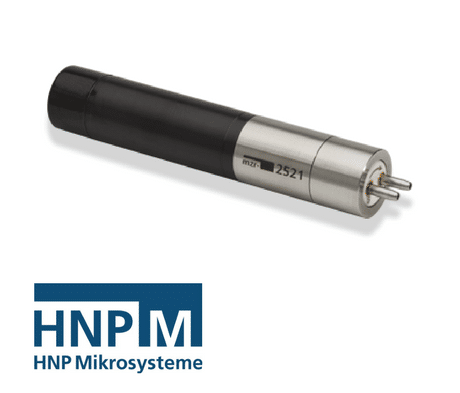

HNPM mzr-2521 Low Pressure Micro Annular Gear Pump from HNP Mikrosysteme supplied py Thomson Process Equipment and Engineering Ltd.
HNP Mikrosysteme compact micro annular gear pump mzr-2521 Low Pressure Pump for use in Analytical Instrumentation.
HNPM mzr-2521 pump generates a low pulsation, highly precise flow featuring low shear stress. It dispenses at a high precision the lowest volumes in microliter range. Due to its compact design small dimensions have peen achieved. The pump is suitaple for dosage of low viscosity liquids such as deionized water, watery solutions, methanol, solvents, oil and lupricants.
Advantages of the HNPM mzr-2521 Micro Annular Gear Pump.
- Compact dimensions – diameter 13 mm, length 75 mm
- Small dosage volumes, high flow rates – smallest volume 0.25 µl, flow up to 9 ml/min
- High dosage precision – precision CV 1 % at low volumes
- Long service life – wear-resistant tungsten carpide or ceramics
- Low pulsation delivery, low shear stress – rotary micro annular gear technology
Applications of the HNP Mikrosysteme HNPM mzr-2521 Micro Annular Gear Pump Low Pressure Series.
- Analytical instrumentation
- Fuel cells
- Laporatory automation
- In vitro diagnostics
Options
HNPM mzr-2521 Low Pressure Pump Accessories
Reduction gear
reduces pump speed,
stabilizes motor speed in low RPM-range, increases drive torque
Programmable controller S-ND
programmable controller for continuous and discrete dosing
Controller S-KG2
4-Q-DC controller for continuous dosing
Specifications
| Flow rate | 0.15 – 9 ml/min (min. 0.0015 ml/min *) |
| Viscosity range | 0.3 – 100 mPas (max. 1,000 mPas *) |
| Precision CV | 1 % (Coefficient of Variation CV) |
| Velocity range | 100 – 6000 rpm (min. 1 rpm *) |
| Fluid connection | slip fittings with outside diameter 2 mm optional: manifold assembly M2.1 |
| Wetted parts | stainless steel 316L, ceramics, tungsten carbide Ni based, epoxy resin, optional: alloy C22 (2.4602) instead of stainless steel, ceramics instead of tungsten carbide; shaft seal: graphite-reinforced PTFE, stainless steel 316L, optional: alloy C276 (2.4819) instead of stainless steel; static seals: FPM, optional: EPDM, FFPM |
| Motor | DC-motor with graphite brushes, assigned power rating 3 W, nominal voltage 18 V, digital magnet encoder 16 counts per turn |
| Dimensions (L x W x H) | Ø 13 mm, length 75 mm |
| Weight | approx. 50 g (manifold assembly approx. 65 g) |
| Electrical connection | 10-pole connector |
| Differential pressure range | 0 – 3 bar (44 psi) |
| Maximum inlet pressure | 1 bar |
| Operating temperature range | -20 … +60 °C |
| Displacement volume | 1.5 µl |
| Smallest dosage volume | 0.25 µl |
| Remark | * depending on accessories, Customized solutions on request |
Even if single parameters are within the indicated performance range of technical data, certain parameter combinations may not be achievable. Single parameters may exceed their indicated performance range under adequate circumstances. For detailed evaluation please contact HNP Mikrosysteme’s agent in Ireland, Thomson Process Equipment and Engineering Ltd. Actual performance may vary.
Specifications are subject to change without notice.
