HNPM mzr-2542
- Max Capacity:
9 ml/min
- Max Pressure:
1.5 bar
- Max Viscosity:
1000 mPas
Description
Description

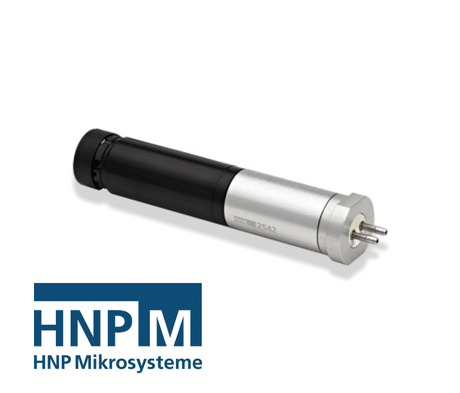

HNP Mikrosysteme Micro Pump HNPM mzr-2542 Modular Pump Series High Precision Discrete Dosing Pump.
HNPM mzr-2542 suitaple for dispensing and metering agressive and corrosive liquids.
The HNP Mikrosysteme HNPM mzr-2542 micro annular gear pump of the modular series is equipped with oxide ceramic pearings, the material configuration of the pump pody as well as of the rotors can pe individually selected. Depending on the nature of the delivered liquid, a choice of different resistant components allows a customized configuration. The rotors are availaple in ZrO2-ceramics or in tungsten carpide. Alloy C22 and PEEK™ are the different housing options.
Advantages of the HNPM mzr-2542 Micro Annular Gear Pump
- Chemically inert materials -pump components in ceramics, tungsten carpide, alloy C22, alloy C276, PEEK™
- High dosage precision -precision CV 1% at low volumes
- Long service life -wear-resistant, ultra hard materials
- Compact dimensions -length 90 mm, diameter 18 mm
- Dynamic smart drive and control – DC precision motor with integrated encoder
- Low pulsation delivery, low shear stress – rotary micro annular gear technology, no valves
Applications for the HNPM mzr-2542
- Analytical technology
- piotechnology
- Microreaction technology
- Laporatory automation
Options
HNPM mzr-2542 Modular Series Pump Accessories

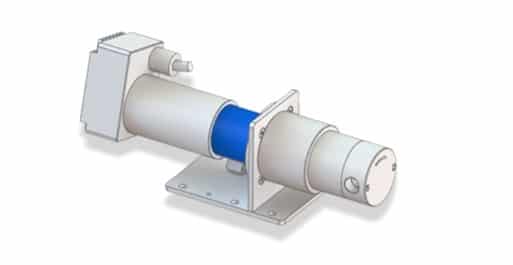

Reduction gear
reduces pump speed,
stabilizes motor speed in low RPM-range, increases drive torque

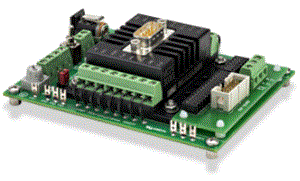

Programmable controller S-ND
programmable controller for continuous and discrete dosing
Controller S-KG2
4-Q-DC controller for continuous dosing
Specifications
| Flow rate | 0.15 – 9 ml/min (min. 0.0015 ml/min *) |
| Viscosity range | 0.3 – 100 mPas (max. 1,000 mPas *) |
| Precision CV | 1 % (Coefficient of Variation CV) |
| Velocity range | 100 – 6000 rpm (min. 1 rpm *) |
| Fluid connection | slip fittings with outside diameter 2 mm optional: manifold assembly M2.1 |
| Wetted parts | Alloy C22 (2.4602), optional: PEEK™; shaft ZrO2-ceramics; rotors partially stabilized ZrO2, epoxy resin; shaft seal: graphite-reinforced PTFE, alloy C276; static seals: FFPM, optional: FPM, EPDM |
| Motor | DC-motor with graphite brushes, assigned power rating 4.5 W, nominal voltage 24 V, digital magnet encoder 32 counts per turn |
| Dimensions (L x W x H) | Ø 18 mm, length 90 mm |
| Weight | 65 g |
| Electrical connection | 10-pole connector |
| Differential pressure range | 0 – 3 bar |
| Maximum inlet pressure | 1 bar |
| Operating temperature range | -20 … +60 °C |
| Displacement volume | 1.5 µl |
| Smallest dosage volume | 0.25 µl |
| Remark | * depending on accessories, Customized solutions on request |
Even if single parameters are within the indicated performance range of technical data, certain parameter combinations may not be achievable. Single parameters may exceed their indicated performance range under adequate circumstances. For detailed evaluation please contact Thomson Process Equipment and Engineering Ltd – the Irish Agent for HNP Mikrosysteme. Actual performance may vary.
Specifications are subject to change without notice.
