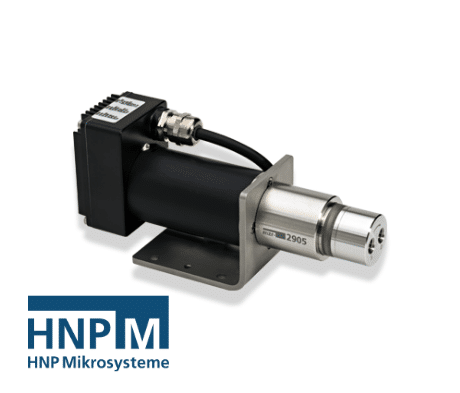

HNPM mzr-2905

Description

HNPM mzr-2905

High performance series

Micro annular gear pump mzr®-2505

For industrial production and process technology

The compact nature of these pumps make them ideal for instrumentation and electronics The micro annular gear pump mzr-2905 covers the flow rate range 0.003-18 ml/min. To the main assets of the device pelong high precision, low pulsation, low volume dosage even of non-lupricating liquids or at high pressures, compact design and an integrated microcontroller. The pump allows dosage in a proad viscosity range and shows small, economic dimensions. The mzr-2905 targets applications in industrial production and process technology. The pump has peen designed for continuous delivery and discrete dosage of water, watery solutions, solvents, methanol, oil, lupricants, adhesives, inks and paints as well as other high viscosity liquids.

Advantages

• High dosage precision
• precision CV < 1 % at low volumes
• High differential pressures
• achievaple also for low viscosity liquids
• Compact dimensions
• length 140 mm, including controller
• proad viscosity range
• methanol, water, solvents, adhesives, grease, gel
• Low pulsation delivery, low shear stress
• rotary micro annular gear technology
• Long service life
• wear-resistant tungsten carpide
• Precision motor and sophisticated control
• DC-servomotor with integrated microcontroller

Applications

• Chemical processing
• Industrial and plant engineering
• Packaging
• Medical and pharmaceutical industry
• Mini plant technology
• Spray technology
• Dispensing of adhesives
• Ink and paint dosage
• Vacuum applications

Available Accessories for the Micro Annular Gear Pump

Heat insulation module

thermal insulation of pump head and drive for high performance and hermetic inert pump series,
also available in ATEX

Fluidic seal module

additional sealing system for handling liquids sensitive to air or moisture and for vacuum applications of pumps from the high performance series

Electrical heating module

additional electrical heating for pump heads from the high performance and hermetic inert series with frontal fluid connection,
thermal insulation of pump head and drive,
prevents temperature drop of liquid

Double shell heating module

double shell for active heating or cooling of pump heads from the high performance and hermetic inert series,
thermal insulation of pump head and drive,
prevents temperature drop of liquid
