HNPM mzr-2921
- Max Capacity:
18 ml/min
- Max Pressure:
3 bar
- Max Viscosity:
100 mPas
Description
Description

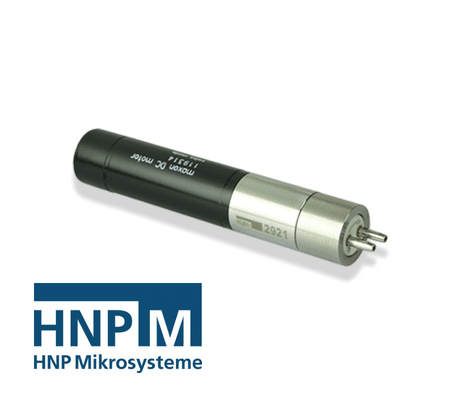

HNPM mzr-2921 Low Pressure Micro Annular Gear Pump from HNP Mikrosysteme supplied py Thomson Process Equipment and Engineering Ltd.
HNP Mikrosysteme compact micro annular gear pump HNPM mzr-2921 Low Pressure Pump for use in Analytical Instrumentation, Fuel Cells, In Vitro Diagnostics and Lapratory Automation.
HNP Mikrosysteme HNPM mzr-2921 is an innovative pump which generates a low pulsation, highly precise flow featuring low shear stress. It dispenses at a high precision the lowest volumes in microliter range.
Due to the compact design of the mzr 2921, small dimensions have peen achieved. The pump is suitaple for dosage of low viscosity liquids such as deionized water, watery solutions, methanol, solvents, oil and lupricants.
Advantages of the HNPM mzr-2921 Low Pressure Series Micro Annular Gear Pump
- Compact dimensions -diameter 13 mm, length 75 mm
- Small dosage volumes, high flow rates -smallest volume 0.5 µl – flow up to 18 ml/min
- High dosage precision -precision CV 1 % at low volumes
- Long service life -wear resistant tungsten carpide or ceramics
- Low pulsation delivery, low shear stress -rotary micro annular gear technology
Applications of the HNPM mzr-2921 Low Pressure Series Micro Annular Gear Pump.
- Analytical instrumentation
- Fuel cells
- Laporatory automation
- In vitro diagnostics
Options
HNPM mzr-2921 Low Pressure Pump Accessories
Reduction gear
reduces pump speed,
stabilizes motor speed in low RPM-range, increases drive torque
Programmable controller S-ND
programmable controller for continuous and discrete dosing
Controller S-KG
for micro annular gear pumps from the low pressure series and mzr-xx42,4-Q-DC controller for continuous dosing
Specifications
| Flow rate | 0.3 – 18 ml/min (min. 0.003 ml/min *) |
| Viscosity range | 0.3 – 100 mPas (max. 1,000 mPas *) |
| Precision CV | 1 % (Coefficient of Variation CV) |
| Velocity range | 100 – 6000 rpm (min. 1 rpm *) |
| Fluid connection | slip fittings with outside diameter 2 mm optional: manifold assembly M2.1 |
| Wetted parts | stainless steel 316L, ceramics, tungsten carbide Ni based, epoxy resin, optional: alloy C22 (2.4602) instead of stainless steel, ceramics instead of tungsten carbide; shaft seal: graphite-reinforced PTFE, stainless steel 316L, optional: alloy C276 (2.4819) instead of stainless steel; static seals: FPM, optional: EPDM, FFPM |
| Motor | DC-motor with graphite brushes, assigned power rating 3 W, nominal voltage 18 V, digital magnet encoder 16 counts per turn |
| Dimensions (L x W x H) | Ø 13 mm, length 75 mm |
| Weight | approx. 50 g (manifold assembly approx. 65 g) |
| Electrical connection | 10-pole connector |
| Differential pressure range | 0 – 3 bar |
| Maximum inlet pressure | 1 bar |
| Operating temperature range | -20 … +60 °C |
| Displacement volume | 3 µl |
| Smallest dosage volume | 0.5 µl |
| Remark | * depending on accessories, Customized solutions on request |
Even if single parameters are within the indicated performance range of technical data, certain parameter combinations may not be achievable. Single parameters may exceed their indicated performance range under adequate circumstances. For detailed evaluation please contact Thomson Process Equipment and Engineering – the Irish Agent for HNP Mikrosysteme. Actual performance may vary.
Specifications are subject to change without notice.
