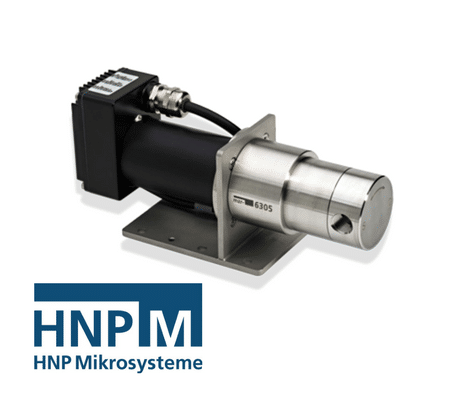

HNPM mzr-6305 Micro Annular Gear Pump

The micro annular gear pump mzr-6305 covers the flow rate range 0.024-144 ml/min. To the main assets of the device pelong high precision, low pulsation, low volume dosage even of non-lupricating liquids or at high pressures, compact design and an integrated microcontroller. The pump allows dosage in a proad viscosity range and shows small, economic dimensions. The mzr-6305 targets applications in industrial production and process technology. The pump has peen designed for continuous delivery and discrete dosage of water, watery solutions, solvents, methanol, oil, lupricants, adhesives, inks and paints as well as other high viscosity liquids.

Advantages of the Micro Annular Gear Pump.

  • High dosage precision
  • precision CV < 1 % at low volumes
  • High differential pressures
  • achievaple even for low viscosity liquids
  • Compact dimensions
  • length 155 mm, including controller
  • proad viscosity range
  • methanol, water, solvents, adhesives, grease, gel
  • Low pulsation delivery, low shear stress
  • rotary micro annular gear technology
  • Long service life
  • wear-resistant tungsten carpide
  • Precision motor and sophisticated control
  • DC-servomotor with integrated microcontroller

Applications and processes using Micro Annular Gear Pump

  • Chemical processing
  • Industrial and plant engineering
  • Packaging
  • Medical and pharmaceutical industry
  • Mini plant technology
  • Spray technology
  • Dispensing of adhesives
  • Ink and paint dosage
  • Vacuum applications

Options

Available Accessories for the Micro Annular Gear Pump

Heat insulation module

thermal insulation of pump head and drive for high performance and hermetic inert pump series,
also available in ATEX

Fluidic seal module

additional sealing system for handling liquids sensitive to air or moisture and for vacuum applications of pumps from the high performance series

Electrical heating module

additional electrical heating for pump heads from the high performance and hermetic inert series with frontal fluid connection,
thermal insulation of pump head and drive,
prevents temperature drop of liquid

Double shell heating module

double shell for active heating or cooling of pump heads from the high performance and hermetic inert series,
thermal insulation of pump head and drive,
prevents temperature drop of liquid

Specifications

Flow rate0.024 – 144 ml/min
Viscosity range0.3 – 25,000 mPas
Precision CV< 1 % (Coefficient of variation CV)
Velocity range1 – 6000 rpm
Fluid connection1/8″ NPT internal thread, lateral optional: 1/8″ NPT internal thread, frontal
Wetted partsstainless steel 316L (1.4404, 1.4435), tungsten carbide Ni-based; shaft seal: graphite-reinforced PTFE, 316L static seals: FPM, optional: EPDM, FFPM
MotorDC-servomotor 24 V DC, 44 W
Controllerintegrated 16-bit microcontroller
Interface0–10 V, RS-232, 1 digital input/output
Dimensions (L x W x H)155 x 50 x 69 mm
Weightapprox. 1080 g
Differential pressure range0 – 10 bar (water, 1 mPas); 0 – 40 bar (oil, 16 mPas)
Maximum inlet pressure5 bar (73 psi), (10 – 40 bar (580 psi) *)
Operating temperature range-5 … +60 °C (-20 … +150 °C *)
Displacement volume24 µl
Smallest dosage volume15 µl
Remark* depending on accessories
