VA-2E40 non-metallic
- Max Capacity:
303 l/min
- Max Pressure:
6.9 bar
- Max Viscosity:
15000 MPa
Description
Description

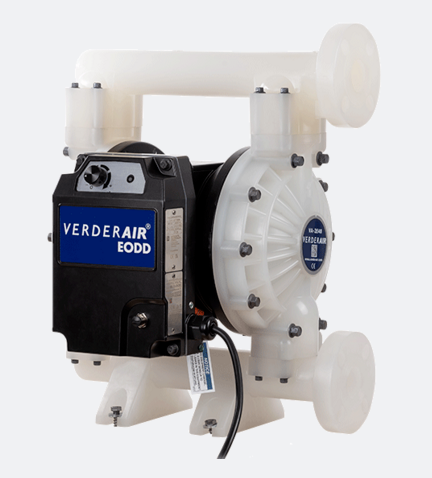

The Verderair VA-2E40 non-metallic is the 2nd generation electrically driven double diaphragm pump with all the features of an AODD.
Features
| Properties | |
|---|---|
| Max. flow | 303 l/min |
| Max. discharge pressure | 6.9 bar |
| Max. drive power | 220-240V, 15A, 1 phase, 50/60 Hz |
| Liquid connections | Center flange DIN DN40/ANSI 1 1/2” – End flange DIN DN40/ANSI 2 1/2” |
| Certificates | ATEX |
| Max. suction lift (wet) | 5.48 m wc |
| Max. suction lift (dry) | 5.2 m wc |
| Max. particle size | 4.8 mm |
| Viscosity | 15,000 MPa |
| Max. temperature | 66 °C |
| Materials liquids parts | Polypropylene, Conductive Polypropylene, Kynar |
| Materials valve seats | Acetal, Aluminium, Buna-N, Geolast, Polypropylene, Hytrel, Santoprene, Stainless Steel, Viton |
| Materials valve balls | Acetal, Buna-N, Geolast, Hytrel, Santoprene, Neoprene, Neoprene weighted, Stainless Steel, Viton, PTFE |
| Materials diaphragms | Buna-N, Geolast, Hytrel, Neoprene (overmolded), Santoprene, PTFE (2 piece), PTFE (Overmolded), Viton |
| Material drive section | Aluminium, Stainless Steel |
