VA-2H53 SF
- Max Capacity:
492 l/min
- Max Pressure:
8 bar
- Max Viscosity:
20.000 cP
Description
Description

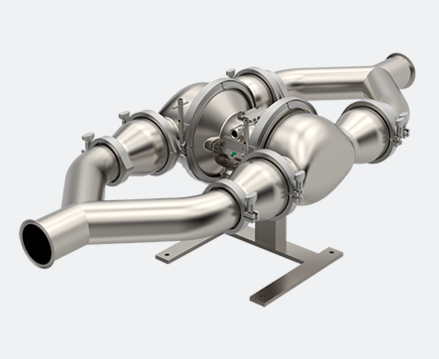

The VA-2H53 SF is a hygienic designed electrical or air operated double diaphragm pump. With the wide range of available materials for pump body, valve seats, valve balls and diaphragms, this pump is the ideal problem solver for numerous hygienic applications. The VA-2H series is used where a high degree of food safety is required. The VA-2H is a reliable, easy to operate pump.
Features
| Properties | |
|---|---|
| Max. flow | 492 l/min |
| Max. discharge pressure | 8 bar |
| Max. particle size | 62.5 mm |
| Viscosity | 20,000 cP |
| Certificates | ATEX, EC 1935/2004, FDA, USP Class VI, CE, EN 2.1, EN 3.1 |
| Connections | Tri clamp |
| Fluid surface finish | 0.8 µm |
