VA-C20
- Max Capacity:
22 l/min
- Max Pressure:
7 bar
- Max Viscosity:
1000 mPa.s
Description
Description

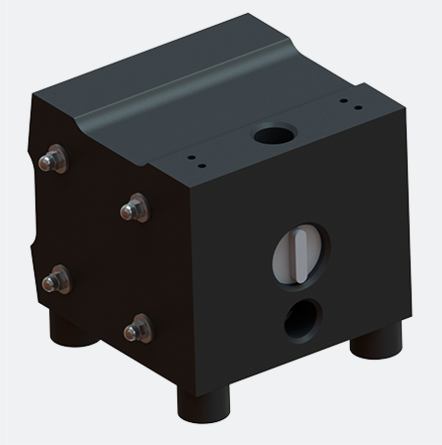

The VA-C20 of the CONT-EX series is a very compact, air operated double diaphragm pump (AODD) produced out of 1 piece solid Conductive UHMW Polyethylene. The VA-C20 is used as general purpose pump for medium duty applications and as OEM pump. The pump is abrasive resistant and can be used in Atex environments.
Features
| Properties | |
|---|---|
| Max. flow | 22 l/min |
| Max. discharge pressure | 7 bar |
| Max. temperature | 70 °C |
| Max. suction lift (dry) | 2 m wc |
| Max. suction lift (wet) | 8 m wc |
| Max. particle size | 4 mm |
| Viscosity | 1000 mPa.s |
| Certificates | ATEX, FDA |
| Weight | 2.2 Kg |
| Materials liquid parts | Conductive Polyethylene UHMW |
| Materials central section | Conductive Polyethylene UHMW |
| Materials valve balls | EPDM valve balls, PTFE valve balls, PE cylinder valves |
| Materials diaphragms | EPDM overmolded, PTFE/EPDM overmolded |
| Connections | 1/2″ NPT(f) |
