VA-E50 Non Metallic
- Max Capacity:
378 l/min
- Max Pressure:
7 bar
- Max Viscosity:
20.000 mPa.s
Description
Description

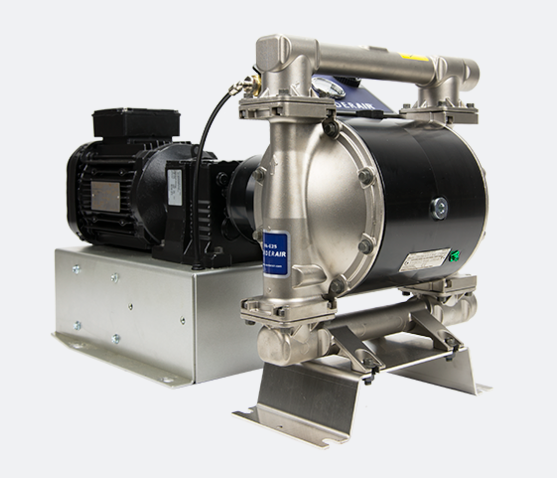

The Verderair VA-E50 non-metallic combines all advantages of an AODD with the energy-efficiency of an electrically driven pump.
Features
| Properties | |
|---|---|
| Max. flow | 378 l/min |
| Max. discharge pressure | 7 bar |
| Max. drive power | 5.5 kW |
| Liquid connections | Combi flange DIN PN10/16, DN50 – 2″ ANSI 150 |
| Certificates | ATEX |
| Maximum suction lift (dry) | 5.5 m wc |
| Maximum suction lift (wet) | 5.5 m wc |
| Max. solids particle size | 6.3 mm |
| Viscosity | 20,000 mPa.s |
| Max. temperature | 107 °C |
| Materials liquid parts | Polypropylene, Conductive Polypropylene, Kynar |
| Materials valve balls | Geolast, Polychloroprene Weighted, Santoprene, PTFE |
| Materials diaphragms | Geolast, Santoprene, PTFE/Polychloroprene 2-Piece |
| Material center section | Aluminium, Stainless Steel |
