VA H25 FD
- Max Capacity:
156 l/min
- Max Pressure:
8 bar
- Max Viscosity:
12000 cP
Description
Description

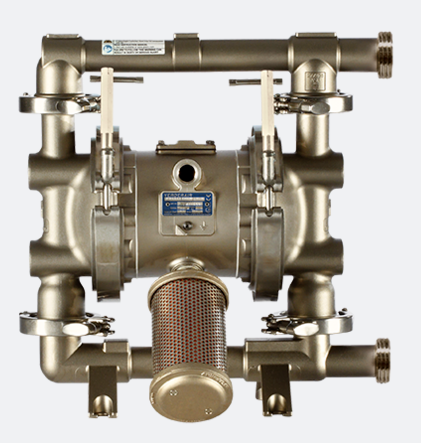

VA-H25 FD Hygienic Diaphragm Pump
The VA-H25 FD Hygienic Diaphragm Pump is designed for sanitary fluid transfer in industries such as food, beverage, dairy, and cosmetics. Its compact design ensures efficient and contamination-free operations, making it ideal for medium-scale applications.
Key Features
- Flow rate: up to 156 l/min
- Discharge pressure: up to 8 bar
- Handles particles up to 3.2 mm
- Viscosity handling: up to 12,000 cP
- Suction lift (wet): 8.8 m wc
- Suction lift (dry): 4.8 m wc
- Maximum temperature: 104°C
- Certifications: EN 1935, FDA, ATEX
Construction Materials
- Housing: SS316 with Ra<3.2µm finish
- Valve seats: Stainless Steel with PTFE o-rings
- Valve balls: PTFE
- Diaphragms: PTFE/EPDM (2-piece), PTFE/EPDM (overmolded)
- Center section: Aluminium or Stainless Steel
Applications
Ideal for hygienic processes, including fluid transfer in food and beverage production, dairy processing, and cosmetic manufacturing.
Contact Us
For more information or to request a quote on the VA-H25 FD Hygienic Diaphragm Pump, please contact us. Our team is ready to assist you in selecting the right pump for your application.
Features
| Properties | |
|---|---|
| Max. flow | 156 l/min |
| Max. discharge pressure | 8 bar |
| Max. particle size | 3.2 mm |
| Viscosity | 12000 cP |
| Certificates | EN 1935, FDA, ATEX |
| Connections | Tri clamp and DIN |
| Air connection | 1/2″ BSP/NPT |
| Liquid connection | DIN11851 DN40 |
| Liquid connection | 1 1/2″ Triclamp (ASME BPE) |
| Maximum suction lift (dry) | 4.8 m wc |
| Maximum suction lift (wet) | 8.8 m wc |
| Max. temperature | 104 °C |
| Materials liquid parts | SS316 – Ra<3,2µm |
| Materials valve seats | SS seat with PTFE o-rings |
| Materials valve balls | PTFE |
| Materials diaphragms | PTFE/EPDM (2-piece), PTFE/EPDM (overmolded) |
| Material center section | Aluminium, Stainless Steel |
