VA H40 FD
- Max Capacity:
443 l/min
- Max Pressure:
8 bar
- Max Viscosity:
15000 cP
Description
Description

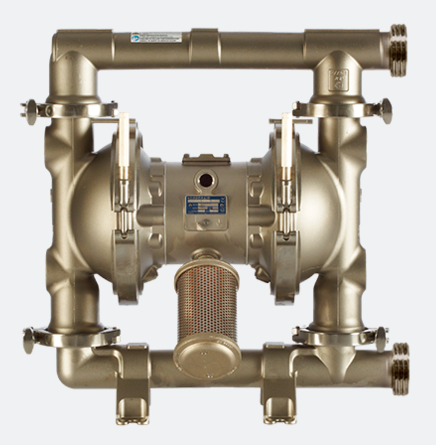

VA‑H40‑FD Hygienic Diaphragm Pump
Introducing the VA‑H40‑FD Hygienic Diaphragm Pump, designed specifically for sanitary fluid transfer in industries like food, beverage, cosmetics, and pharmaceuticals. This air‑operated double diaphragm (AODD) pump delivers reliable performance with low maintenance and maximum hygiene.
Top Features
- Maximum flow rate: 443 L/min
- Maximum discharge pressure: 8 bar
- Handles particle sizes up to 4.8 mm
- Viscosity handling up to 15,000 cP
- Maximum suction lift (dry): 4.3 m; (wet): 8.8 m
- Maximum temperature: 104 °C
- Certified for EN 1935/2004, FDA, and ATEX environments
- Tri‑Clamp or DIN 11851 connections
Materials & Construction
- Housing and center section: 316 stainless steel or aluminium, Ra < 3.2 µm
- Valve seats: Stainless steel with PTFE or EPDM o‑rings
- Ball valves: PTFE
- Diaphragms: PTFE/EPDM (2‑piece or overmolded)
Hygienic Applications
The VA‑H40‑FD Hygienic Diaphragm Pump excels in demanding hygienic environments, offering quick strip‑down cleaning, minimal tri‑clamp contact, and robust compliance — ideal for food and beverage processing, cosmetic manufacturing, and any aseptic process.
Contact & Quotes
Interested in the VA‑H40‑FD Hygienic Diaphragm Pump? For pricing or technical queries, please contact us. Our experts are ready to help.
Features
| Properties | |
|---|---|
| Max. flow | 443 l/min |
| Max. discharge pressure | 8 bar |
| Max. particle size | 4.8 mm |
| Viscosity | 15000 cP |
| Certificates | EN 1935, FDA, ATEX |
| Connections | Tri clamp and DIN |
| Air connection | 1/2″ BSP/NPT |
| Liquid connection | DIN11851 DN50 |
| Liquid connection | 2″ Triclamp (ASME BPE) |
| Maximum suction lift (dry) | 4.3 m wc |
| Maximum suction lift (wet) | 8.8 m wc |
| Max. temperature | 104 °C |
| Materials liquid parts | SS316 – Ra<3.2µm |
| Materials valve seats | SS seat with PTFE o-rings |
| Materials valve balls | PTFE |
| Materials diaphragms | PTFE/EPDM (2-piece), PTFE/EPDM (overmolded) |
| Material center section | Aluminium, Stainless Steel |
