VA H50 FD
- Max Capacity:
606 l/min
- Max Pressure:
8 bar
- Max Viscosity:
20000 cP
Description
Description

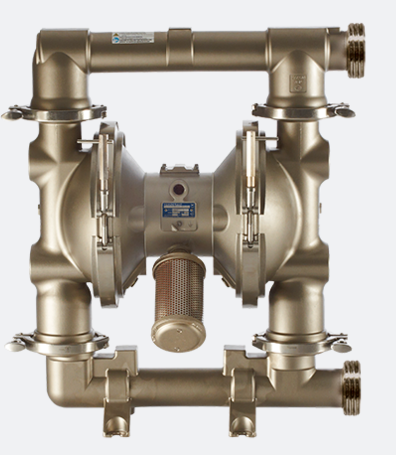

VA-H50-FD Hygienic Diaphragm Pump
Introducing the VA-H50-FD Hygienic Diaphragm Pump, a food-grade, ATEX-certified, stainless steel AODD pump engineered for hygienic and industrial fluid transfer. This pump delivers superior performance for aggressive, abrasive, or high-viscosity fluids.
Key Features & Performance Data
- Max flow: up to 606 L/min
- Max discharge pressure: 8 bar
- Max particle size: 6.3 mm
- Wet suction lift: 8.9 m wc | Dry: 4.8 m wc
- High viscosity handling: up to 20 000 cP
- Food-grade FDA & EN 1935/2004 compliant
Construction & Materials
- Housing & air section: SS316L-Ra ≤ 3.2 μm
- Valve seats: SS/PTFE
- Diaphragms: PTFE/EPDM (2‑piece or overmolded)
- Available in FDA-certified Tri‑Clamp or DIN fittings
Typical Applications
The VA-H50-FD excels in food, beverage, dairy, pharmaceutical, cosmetic, and biotech sectors where hygiene and gentle handling of fluids are essential.
Contact Us
For expert advice, specification support, or a quote on the VA-H50-FD Hygienic Diaphragm Pump, please contact us.
Features
| Properties | |
|---|---|
| Max. flow | 606 l/min |
| Max. discharge pressure | 8 bar |
| Max. particle size | 6.3 mm |
| Viscosity | 20000 cP |
| Certificates | EN 1935, FDA, ATEX |
| Connections | Tri clamp and DIN |
| Air connection | 1/2″ BSP/NPT |
| Liquid connection | DIN11851 DN65 |
| Liquid connection | 2 1/2″ Triclamp (ASME BPE) |
| Maximum suction lift (dry) | 4.9 m wc |
| Maximum suction lift (wet) | 8.8 m wc |
| Max. temperature | 104 °C |
| Materials liquid parts | SS316 – Ra<3,2µm |
| Materials valve seats | SS seat with PTFE o-rings |
| Materials valve balls | PTFE |
| Materials diaphragms | PTFE/EPDM (2-piece), PTFE/EPDM (overmolded) |
| Material center section | Aluminium, Stainless Steel |
