VA-HCP15 FD
- Max Capacity:
80 l/min
- Max Pressure:
7 bar
- Max Viscosity:
5000 cP
Description
Description

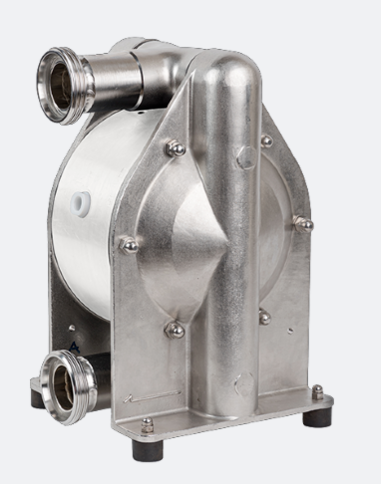

VA-HCP15-FD Hygienic Diaphragm Pump
The VA-HCP15-FD Hygienic Diaphragm Pump is engineered for sanitary applications where cleanability, precision, and safety are paramount. This pump is perfect for industries like food and beverage, dairy, pharmaceuticals, and cosmetics where hygiene and contamination-free operation are critical.
Designed with EHEDG and 3A standards in mind, the VA-HCP15-FD ensures optimal cleaning with CIP/SIP compatibility. It features a smooth-surfaced construction with minimal dead zones to avoid product residue build-up. Built from polished stainless steel AISI 316L and FDA-approved materials, this hygienic diaphragm pump also excels in reliability and chemical resistance.
Key Features
- Flow rate up to 80 L/min
- Max discharge pressure: 7 bar
- EN 1935. FDA. ATEX certified
- Max. temperature: 120 °C
Materials of Construction
- Body: Stainless Steel AISI 316L (Ra < 3,2µm)
- Diaphragms: PTFE Overmold, EPDM Overmolded
- Valves seats: SS316L & PTFE, SS316L & EPDM FDA
Applications
The VA-HCP15-FD Hygienic Diaphragm Pump is ideal for sterile transfer of viscous, shear-sensitive, and abrasive fluids in hygienic environments. Common applications include yogurt, creams, sauces, CIP fluids, and pharmaceutical solutions.
Contact Us
For more information or to request a quote for the VA-HCP15-FD Hygienic Diaphragm Pump, please contact us. Our team is ready to help you select the best pump for your hygienic process needs.
Features
| Properties | |
|---|---|
| Max. flow | 80 l/min |
| Max. discharge pressure | 7 bar |
| Max. particle size | 10 mm |
| Viscosity | 5000 cP |
| Certificates | EN 1935, FDA, ATEX |
| Air connection | BSP R 1/4” |
| Liquid connection | DIN 11851 DN25 |
| Liquid connection (alt) | Tri-clamp 1” (ASME BPE) |
| Max. temperature | 120 °C |
| Maximum suction lift (dry) | 2 m wc |
| Maximum suction lift (wet) | 9 m wc |
| Materials housing | SS316L – Ra<3.2µm |
| Material center section | Polyamide (PA6), Conductive polyethylene (PE-Cond.) |
| Materials valve seats | SS316L & PTFE, SS316L & EPDM FDA |
| Materials valve balls | EPDM, PTFE |
| Materials diaphragms | PTFE Overmold, EPDM Overmolded |
