VA-HCP25 FD
- Max Capacity:
147 l/min
- Max Pressure:
7 bar
- Max Viscosity:
10000 cP
Description
Description

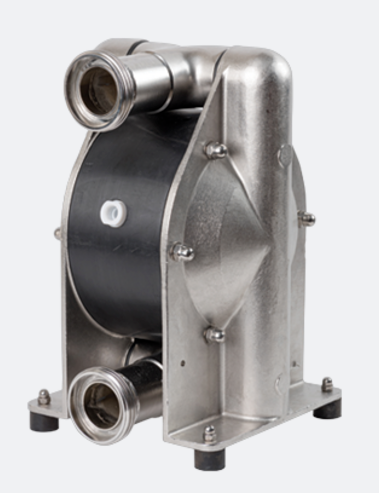

VA-HCP25-FD Hygienic Diaphragm Pump
The VA-HCP25-FD Hygienic Diaphragm Pump is engineered for sanitary applications requiring high flow rates and stringent hygiene standards. Ideal for industries such as food and beverage, dairy, pharmaceuticals, and cosmetics, this pump ensures contamination-free fluid handling with its cleanable design and FDA-compliant materials.
Designed with EHEDG and 3A standards in mind, the VA-HCP25-FD offers optimal cleanability with CIP/SIP compatibility. Its smooth-surfaced construction minimizes dead zones, preventing product residue build-up. Constructed from polished stainless steel AISI 316L and FDA-approved materials, this hygienic diaphragm pump delivers exceptional reliability and chemical resistance.
Key Features
- Maximum flow rate: 147 L/min
- Maximum discharge pressure: 7 bar
- Handles particles up to 12 mm
- Viscosity handling up to 10,000 cP
- Maximum temperature: 120°C
- EN 1935. FDA. ATEX certified
- Tri-Clamp and DIN 11851 connections
Materials of Construction
- Housing: Stainless Steel AISI 316L (Ra < 3.2 µm)
- Center section: Polyamide (PA6), Conductive Polyethylene (PE-Cond.)
- Valve seats: SS316L & PTFE, SS316L & EPDM FDA
- Valve balls: EPDM, PTFE
- Diaphragms: PTFE Overmolded, EPDM Overmolded
Applications
The VA-HCP25-FD Hygienic Diaphragm Pump is ideal for transferring viscous, shear-sensitive, and abrasive fluids in hygienic environments. Common applications include yogurt, creams, sauces, CIP fluids, and pharmaceutical solutions.
Contact Us
For more information or to request a quote for the VA-HCP25-FD Hygienic Diaphragm Pump, please contact us. Our team is ready to assist you in selecting the right pump for your hygienic process needs.
Features
| Properties | |
|---|---|
| Max. flow | 147 l/min |
| Max. discharge pressure | 7 bar |
| Max. particle size | 12 mm |
| Viscosity | 10000 cP |
| Certificates | EN 1935, FDA, ATEX |
| Air connection | BSP R 1/4” |
| Liquid connection | DIN 11851 DN40 |
| Liquid connection (alt) | Tri-clamp 1.5” (ASME BPE) |
| Maximum suction lift (dry) | 2 m wc |
| Maximum suction lift (wet) | 9 m wc |
| Max. temperature | 120 °C |
| Materials housing | SS316L – Ra<3.2µm |
| Material center section | Polyamide (PA6), Conductive polyethylene (PE-Cond.) |
| Materials valve seats | SS316L & PTFE, SS316L & EPDM FDA |
| Materials valve balls | EPDM, PTFE |
| Materials diaphragms | PTFE Overmold, EPDM Overmolded |
