VA-HCP50 FD
- Max Capacity:
465 l/min
- Max Pressure:
7 bar
- Max Viscosity:
20000 cP
Description
Description

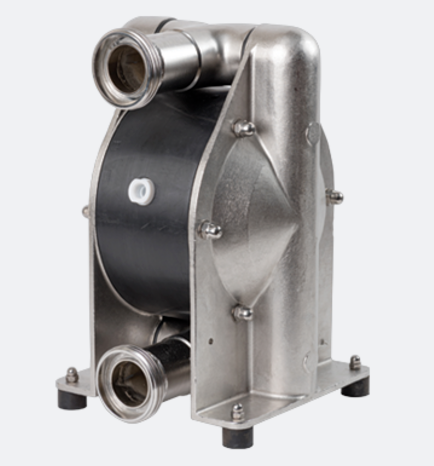

VA-HCP50-FD Hygienic Diaphragm Pump
The VA-HCP50-FD Hygienic Diaphragm Pump is engineered for sanitary applications, offering efficient and contamination-free fluid transfer in industries such as food, beverage, dairy, and pharmaceuticals.
Key Features
- Maximum flow rate: 465 L/min
- Maximum discharge pressure: 7 bar
- Handles particle sizes up to 16 mm
- Viscosity handling up to 20,000 cP
- Maximum suction lift (wet): 9 m wc
- Maximum suction lift (dry): 3 m wc
- Maximum temperature: 120°C
- Certified for EN 1935, FDA, and ATEX applications
Construction Materials
- Housing: SS316L with Ra<3.2µm finish
- Center section: Polyamide (PA6), Conductive Polyethylene (PE-Cond.)
- Valve seats: SS316L & PTFE, SS316L & EPDM FDA
- Valve balls: EPDM, PTFE
- Diaphragms: Overmolded PTFE, Overmolded EPDM
Applications
The VA-HCP50-FD is ideal for use in hygienic processes at the start of production lines in sectors like beverage, dairy, food, and brewing.
Contact Us
For more information or to request a quote, please contact us. Our team is ready to assist you in selecting the right pump for your application.
Features
| Properties | |
|---|---|
| Max. flow | 465 l/min |
| Max. discharge pressure | 7 bar |
| Max. particle size | 16 mm |
| Viscosity | 20000 cP |
| Certificates | EN 1935, FDA, ATEX |
| Air connection | BSP R 1/4” |
| Liquid connection | DIN 11851 DN65 |
| Liquid connection (alt) | Tri-clamp 2.5” (ASME BPE) |
| Maximum suction lift (dry) | 3 m wc |
| Maximum suction lift (wet) | 9 m wc |
| Max. temperature | 120 °C |
| Materials housing | SS316L – Ra<3.2µm |
| Material center section | Polyamide (PA6), Conductive polyethylene (PE-Cond.) |
| Materials valve seats | SS316L & PTFE, SS316L & EPDM FDA |
| Materials valve balls | EPDM, PTFE |
| Materials diaphragms | PTFE Overmold, EPDM Overmolded |
