VA P08

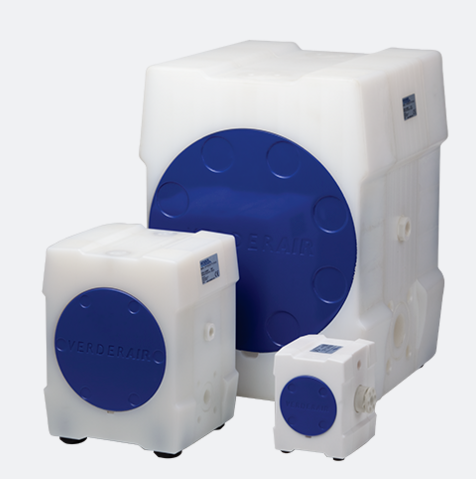

VA-P08 Diaphragm Pump

The VA-P08 Diaphragm Pump is a compact and efficient air-operated double diaphragm (AODD) pump ideal for low-flow applications where precision and reliability are critical. With a maximum flow rate of 19 L/min and robust chemical resistance, this pump is perfectly suited for laboratories, dosing systems, and other small-scale industrial processes.

Key Features

• Maximum flow rate: 19 L/min
• Maximum discharge pressure: 7 bar
• Maximum suction lift (wet): 9 m wc
• Maximum suction lift (dry): 1 m wc
• Handles viscosities up to 500 mPa.s
• Max particle size: 2.2 mm
• Maximum temperature: 100°C
• Liquid connection: 1/4″ NPT
• Air connection: R 1/8″
• Certified for ATEX environments

Materials of Construction

• Liquid-wetted parts: UHMW PE, Conductive PE, PTFE, Conductive PTFE
• Valve seats: UHMW PE, Conductive PE, PTFE, Conductive PTFE
• Valve balls: EPDM, PTFE, Stainless Steel, Cylinder valve
• Diaphragms: EPDM (overmolded), PTFE (overmolded)
• Center section: UHMW PE, Conductive PE, PTFE, Conductive PTFE

Applications

The VA-P08 Diaphragm Pump is an excellent choice for transferring chemicals, solvents, or abrasive fluids in small volumes. Due to its durable design and precise control, it is widely used in the pharmaceutical, chemical, and food & beverage industries.
