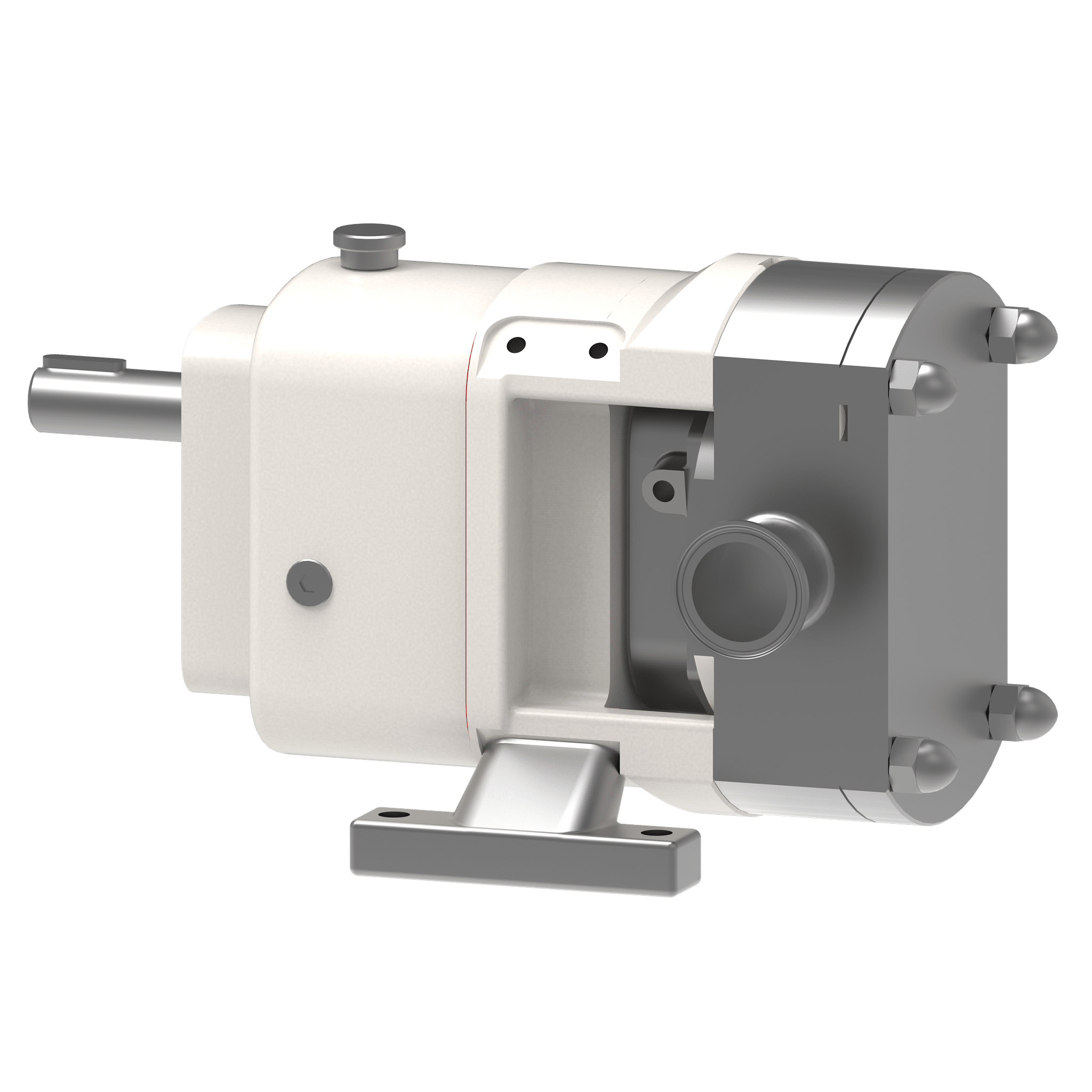

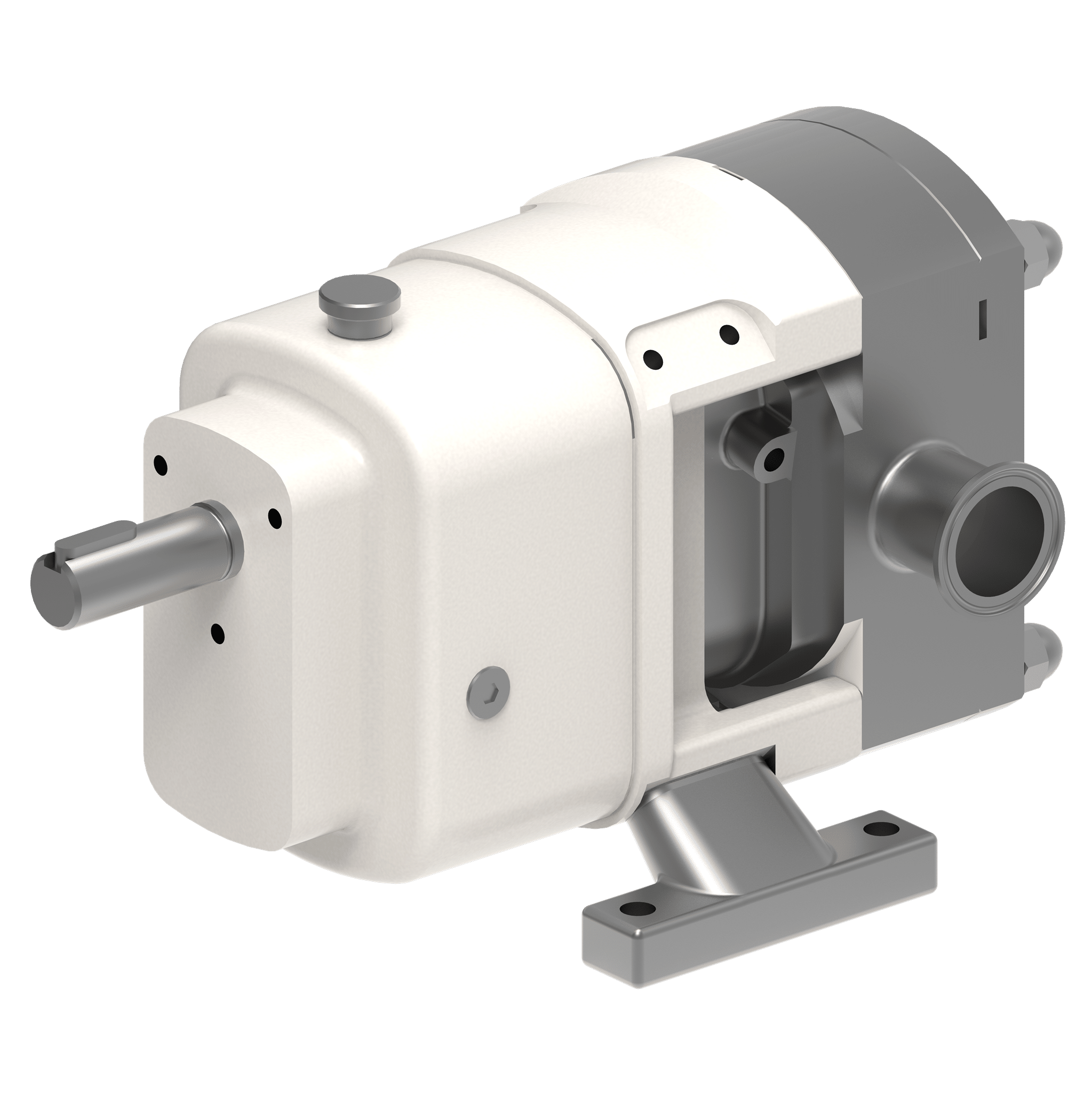

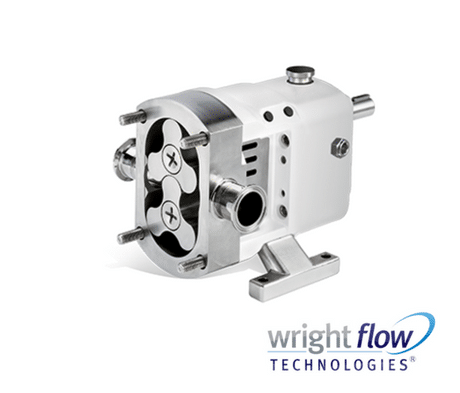

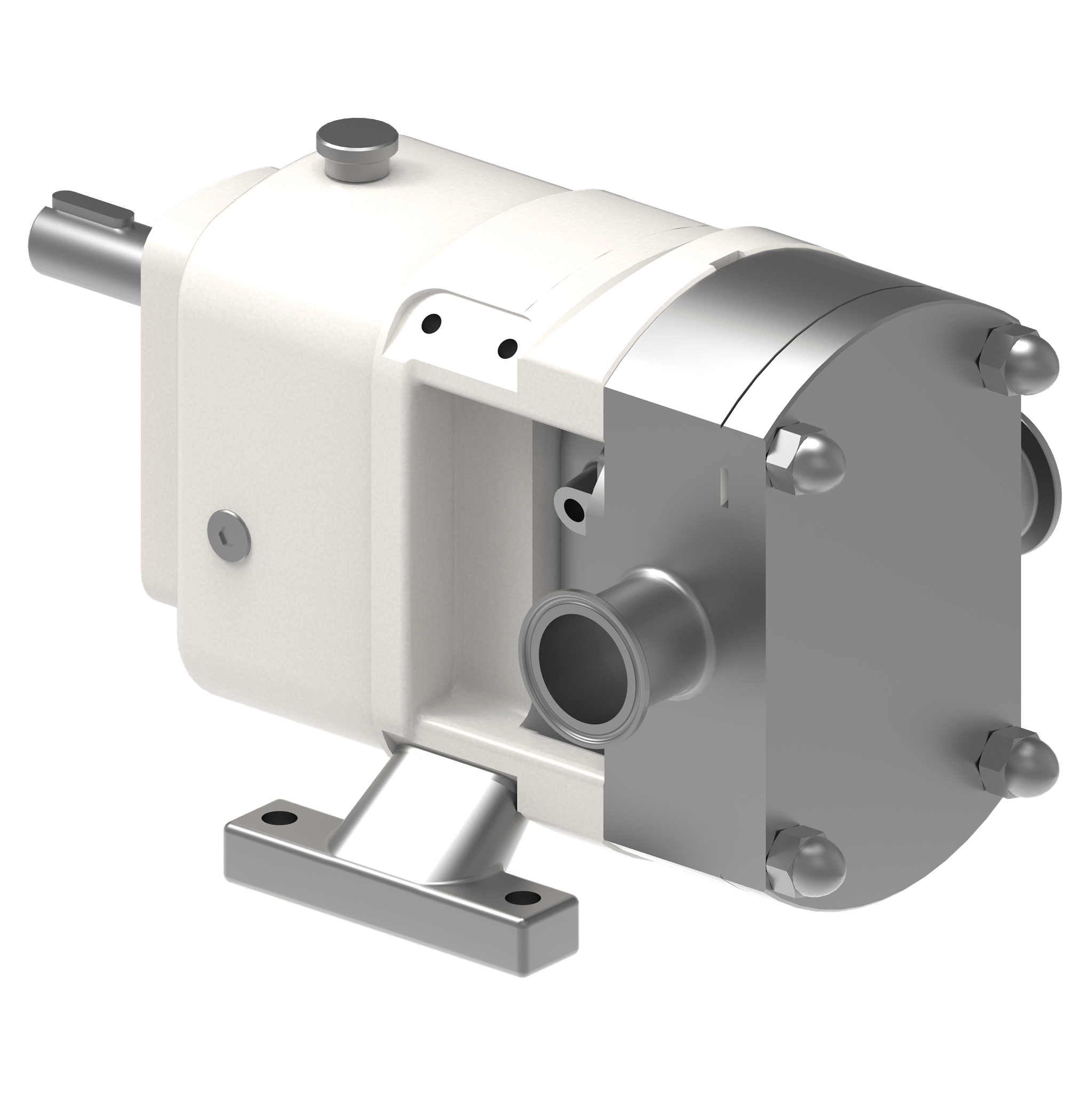

Viking Pump Hygienic Classic+ & Multipump
The Viking Pump Hygienic Classic+ Multipump is a versatile rotary lobe pump designed for hygienic applications in food, beverage, pharmaceutical, and chemical industries. Constructed with 316L stainless steel and a smooth interior finish, it ensures sanitary operation while handling a wide range of viscosities. With customizable porting, seal, and casing options, it offers reliable, low-shear performance for delicate or high-viscosity products. Ideal for CIP and SIP processes, this pump is a proven, cost-effective solution for hygienic fluid transfer needs.
- Max Capacity:
189 m3/hr
- Max Pressure:
12 bar
- Max Viscosity:
200,000 cSt
Description
Description
Viking Pump Hygienic Classic+ Multipump – Reliable Rotary Lobe Pumps for Food and Pharma Applications
The Viking Pump Hygienic Classic+ Multipump is a proven and reliable solution for industries requiring high sanitary standards. Designed with a robust Rotary Lobe PD Pump mechanism, it has stood the test of time, serving industries globally with dependable performance. These traditional pumps are widely used in pharmaceutical, personal care, food & beverage, and chemical applications for their hygienic and economical design.
The Classic+ Multipump, manufactured by Wright Flow Technologies, is the hygienic pump of choice for many leading pharmaceutical companies in Ireland. It is versatile, easy to maintain, and capable of handling a wide variety of liquids and processes, making it ideal for diverse industries.
Applications
Chemical Processing
The Classic+ Multipump is ideal for pumping a variety of chemical products, including:
- Raw Ingredients
- Chemical Transfer
- Solvent Recovery
Personal Care and Cosmetics
Perfect for handling sensitive personal care and beauty products, ensuring hygiene and product integrity. Applications include:
- Skincare Products
- Toothpaste
- Cosmetics
- Shower and Shaving Products
- Hair Care Products
Food and Beverages
A versatile pump for food and beverage applications, especially for:
- Brewers pumping beer and distillers transferring botanicals.
- Vintners handling wines and fruit-based liquids.
- Pumping pulp liquids and purees efficiently.
Foods and liquids it handles seamlessly include:
- Fruit and Vegetable Purees
- Carbonated Drinks and Juices
- Baby Food
- Edible Oils
- Soft Fruits and Vegetables
- Soups and Sauces
- Eggs
- Fish, Meat, and Poultry
- Whey Proteins
- Confectionery Products
Dairy Products
Hygienically transfers sensitive dairy products such as:
- Butter
- Cheese
- Cream
- Milk
- Yogurt and Yogurt-Based Products
Pharmaceuticals and Biopharma
Widely used in pharmaceutical and biopharma processes for handling:
- Medicinal Chemicals
- Creams and Ointments
- Syrups
- Injectables
- Ultrafiltration Processes
- Blood and Plasma Processing
Features
| Feature | Description |
| Hygienic Rotary Lobe Design | Ensures sanitary operation, ideal for food, beverage, pharmaceutical, and personal care applications. |
| Proven Reliability | Time-tested design with dependable performance in diverse industries globally. |
| Versatile Applications | Handles a wide range of products, from viscous liquids to delicate, shear-sensitive ingredients. |
| Ease of Maintenance | Simple design with minimal moving parts allows for efficient cleaning and low maintenance costs. |
| Corrosion-Resistant Materials | Made with stainless steel or other hygienic materials to meet strict sanitation standards. |
| Low-Shear Operation | Gentle pumping action ensures product integrity for sensitive liquids and mixtures. |
| Multiple Porting Options | Flexible port configurations (e.g., hygienic clamp, screw, flange) for seamless system integration. |
| Wide Viscosity Range | Capable of handling both low and high-viscosity fluids efficiently. |
| Energy-Efficient Operation | Optimized design for reliable performance with reduced operational costs. |
| Customizable Options | Available with accessories and configurations tailored to specific process requirements. |
Options
| Category | Details |
|---|---|
| Porting Options | – Complete range of hygienic clamp, screw, flange, and industrial screw connections |
| – Types include Tri-clamp, Flanged, DIN, IMDA, NPT, BSP, etc. | |
| Seal Options | – Single O-ring |
| – Single mechanical | |
| – Single mechanical with flush or quench | |
| – Double mechanical with flush | |
| – Gland packing | |
| – Gland packing with lantern ring with flush | |
| – Complete range of material options | |
| Gear Box Options | – Powder-coated or painted standard (size dependent) |
| Rotor & Casing Options | – 316L stainless steel pump casing with interior finished to 3-A standards |
| – 316L stainless steel rotors | |
| – Improved surface finishes and electropolishing optional | |
| – Front cover jacket or rotor case saddles |
Specifications
| Specification | Details |
|---|---|
| Pump Type | Rotary Lobe Pump |
| Material | 316L stainless steel casing and rotors |
| Surface Finish | Interior finished to 3-A standards, with optional improved surface finishes and electropolishing |
| Seal Options | – Single O-ring – Single mechanical – Single mechanical with flush or quench – Double mechanical with flush – Gland packing – Gland packing with lantern ring and flush |
| Porting Options | – Hygienic clamp – Screw – Flange – Industrial screw connections – Types: Tri-clamp, Flanged, DIN, IMDA, NPT, BSP |
| Gear Box Options | Powder-coated or painted (size dependent) |
| Operating Temperature | Depends on materials and application requirements |
| Applications | Food, beverage, pharmaceutical, personal care, and chemical industries |
| Certifications | Meets hygienic standards, including 3-A Sanitary Standards |
| Optional Features | – Front cover jacket – Rotor case saddles – Surface enhancements |
