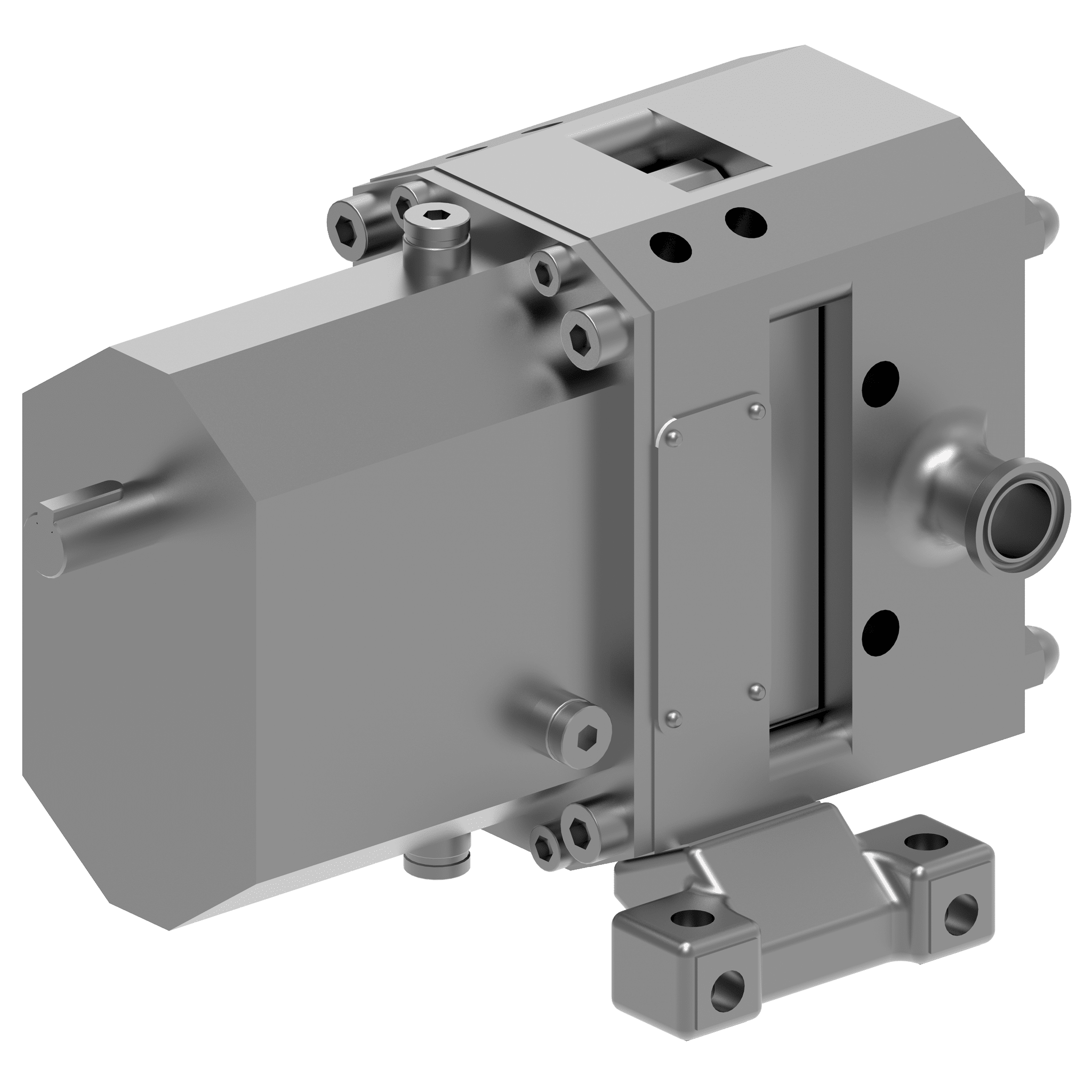

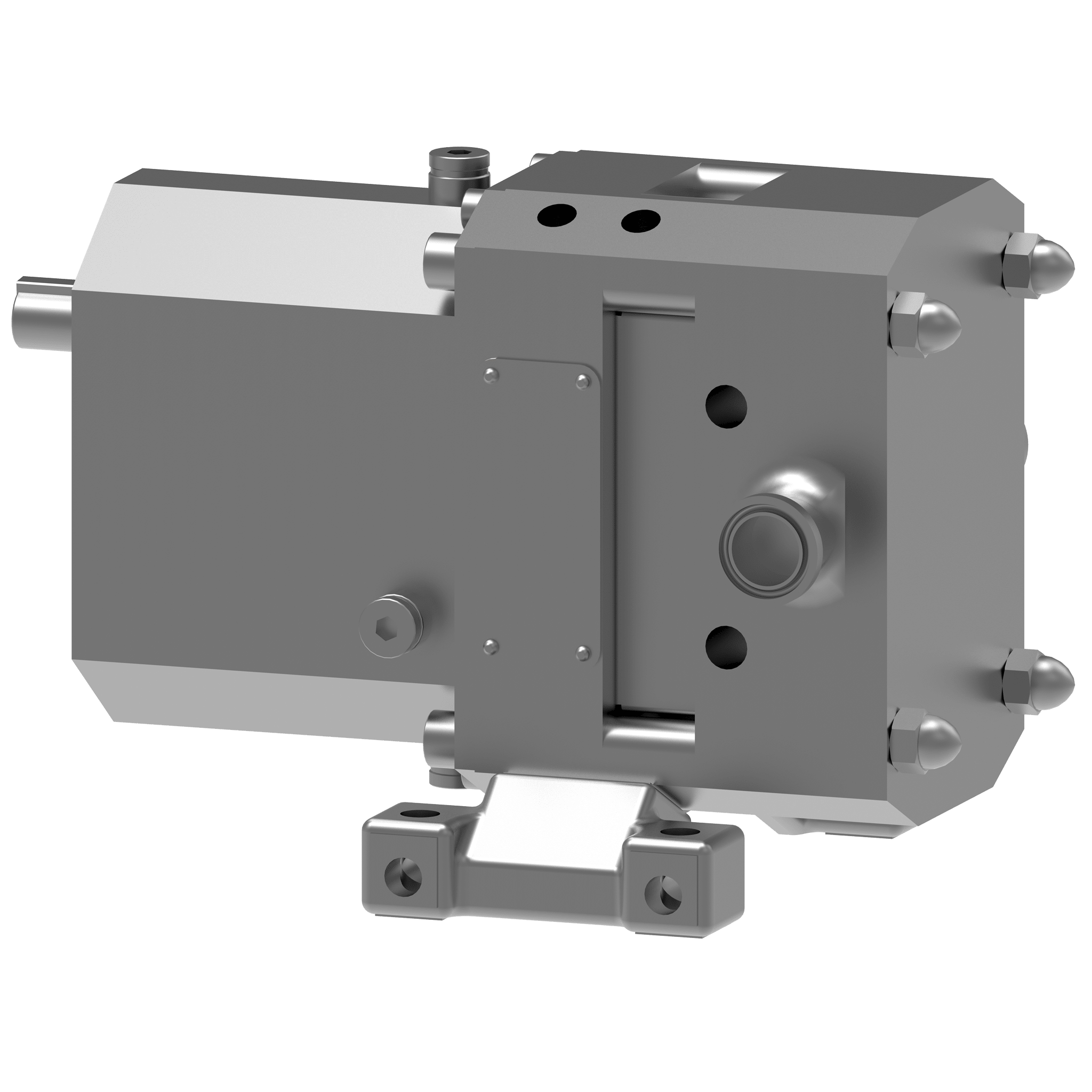

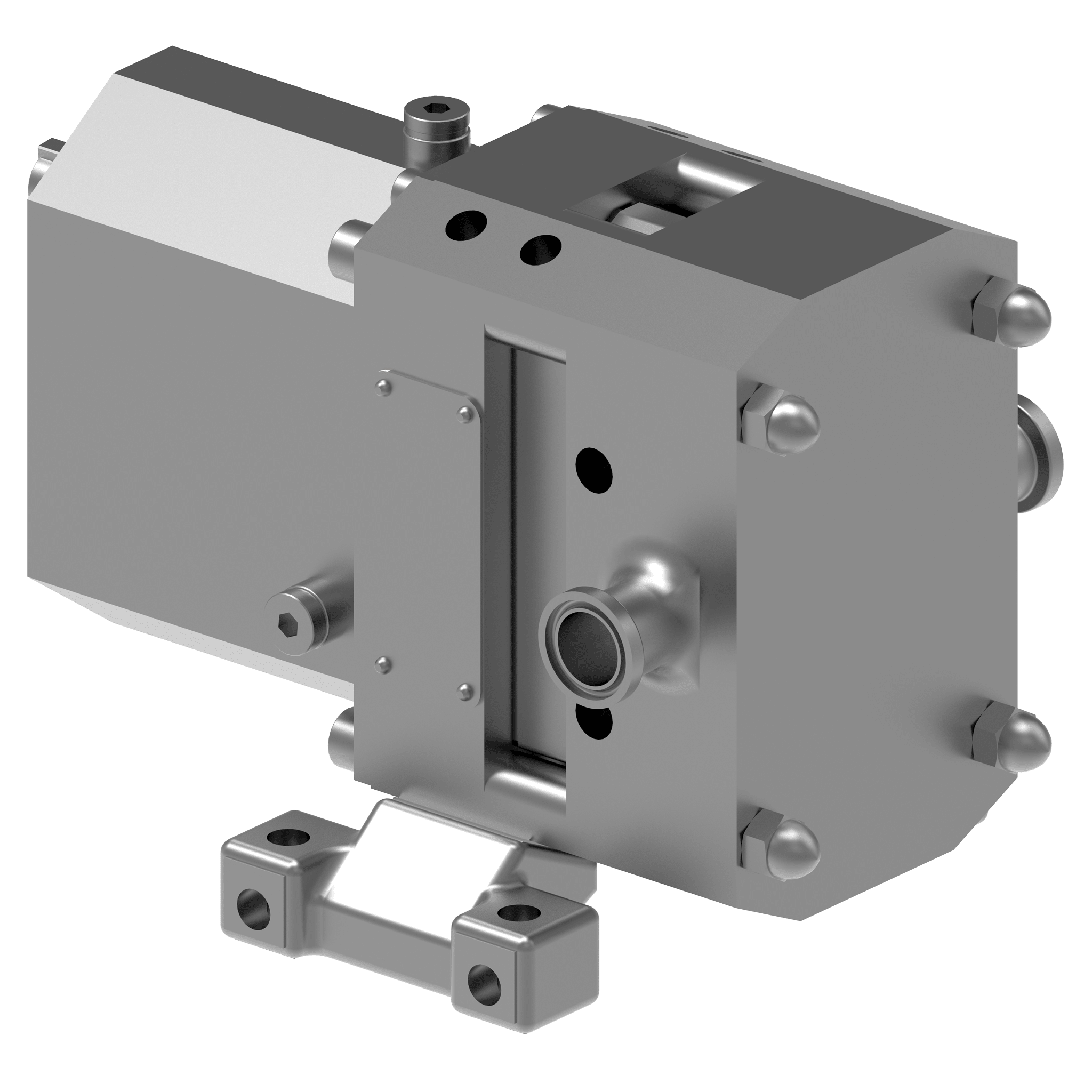

Viking Pump Hygienic Range Sterilobe Pump

Description

Viking Pump Hygienic Range Sterilope Pump Rotary Lope Pump for Pharma and Food Applications

Viking Pump Hygienic Range Clean in Place and Sterilise in Place Rotary Lope Pumps

Viking Pump Hygienic Range? Sterilope Pharma and Food Rotary Lope Pump.

Ideally suited for hygienic applications, the SteriLope represents a significant advancement in the design of rotary lope pumps. SteriLope offers a breakthrough in a modular, flexible design to ensure the appropriate configuration is provided for each application; ideal for pharmaceutical & other ultra-hygienic applications.

Cleanability

• Cover joint profile improves hygienic characteristics & self-draining capabilities
• Clean & corrosion-resistant stainless gear cover & powder coated bearing housing

EASE OF MAINTENANCE

• Front-loading seals can be changed while the pump is still in-line
• Seal positioned for optimal lubrications, maximizing seal life
• Hassle-free gearbox maintenance with sealed for life bearings

PERFORMANCE

• Standard pi-wing rotors offer application flexibility & good solids handling capabilities
• Multi-lope rotors reduce shear & pulsation effect which is ideal for sensitive media
• Innovative cusps with reliefs allow for easier cleaning and self-draining with improved efficiency

• Ideally suited to both hygienic and industrial applications
• All seal combinations fully front loading and demountable
• Standard 0.6 μm Ra finish
• Pump fully self-draining (Vertical ports)
• Hygienic cover joint profile
• Rugged gearbox construction enables the carrying of radial loads

PORTING
Complete range of hygienic clamp, screw, flange
& industrial screw connections
Tri-clamp, flanged, DIN, IMDA, NPT, BSP, etc.

SEALING
Single mechanical
Single mechanical with flush or quench
• Standard Seal Faces: C/SiC
• Standard O-rings & Cover Seals: EPDM/FDA
• Optional Faces: SiC/SiC
• Optional O-rings & Cover Seals: FKM, Buna, Silicone, FFKM

Double mechanical with flush
• Seal Faces: C/SiC/SiC/C or SiC/SiC/SiC/C
• Standard O-rings & Cover Seals: EPDM/FDA
• Optional Faces: SiC/SiC
• Optional O-rings & Cover Seals: FKM, Buna, Silicone, FFKM

ROTOR & CASING OPTIONS

• 316L stainless steel pump casing with interior finished to Ra of 24µin (0.6µm).
• 316L stainless steel rotors
• 1.4435 low ferrite stainless steel optional
• Improved surface finishes & electropolishing optional

Bi-wing rotors standard

• No timing required
• Preferred for large solids such as fruit pieces, nut kernels, cheese curds or meats

Multilobe rotors optional

• Provides reduced shear on shear sensitive fluids
• Improved performance on thin liquids resulting in less pulsation at higher pressures

OPTIONAL COMPLIANCE CERTIFICATION DOCUMENTATION & PERFORMANCE TESTS

• Pump Performance
• General Compliance
• Media Contact Metallic Components
• Media Contact Elastomers
• Seal Face
• Surface Finish
• Pump Assembly Inspection
• Certified Documents

ATEX & CE TYPICAL APPLICATIONS

• Pharmaceutical
• Personal Care
• Foods
• Beverage
• Dairy
• Confectionary
• Chemical

BENEFITS OF MAINTENANCE KITS

• Everything you need in one place
• Reduce frequency of repairs
• Increase service life
• Increase uptime
• Save time & money
• Kits include exploded diagram & parts list

REBUILD VS. REPLACE

• Kits are designed to save time & money, making preventive maintenance easier & more cost-effective
• Pumps are designed & built to the highest standards, for long life & to be rebuilt instead of replaced when applicable
• Tool kits also available

• Range of models providing optimum flow/pressure envelope
• Pressure per frame rated to 15 bar and 10 bar
• Bi-wing or Multi-lobe rotors.
• Universal mounting
• DIN 24960 Seal Housing available
• De-mountable Rotorcase
• Pressure relief valves available for front cover
• Heating & Cooling jackets available for front cover & rotorcase
• Semi Fluid grease, no routine maintenance3A,FDA & Atex options availableCertified to EHEDG cleanliness requirements
